BEHRINGER HBE261A Dynamic

Cutting range 90° round (mm) : 260
Cutting range 90° flat (W x H in mm) : 300x260
Manufacturer: BEHRINGER GmbH
SKU: HBE261A
Product Files

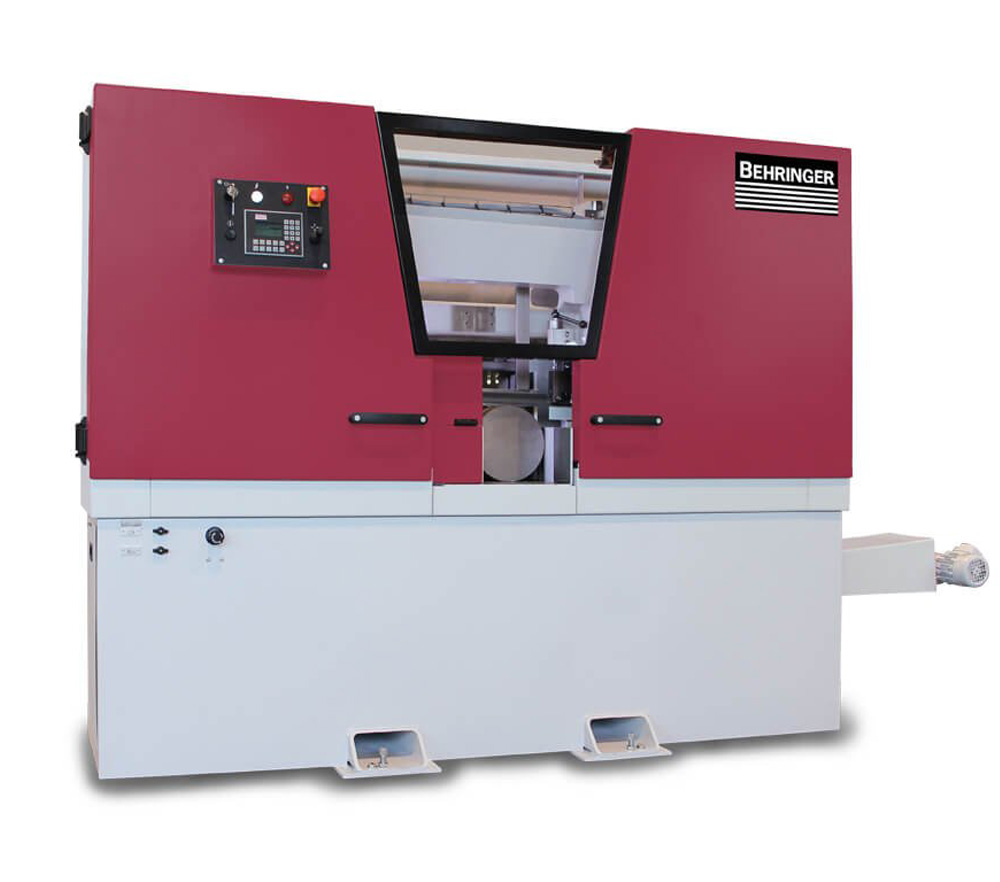

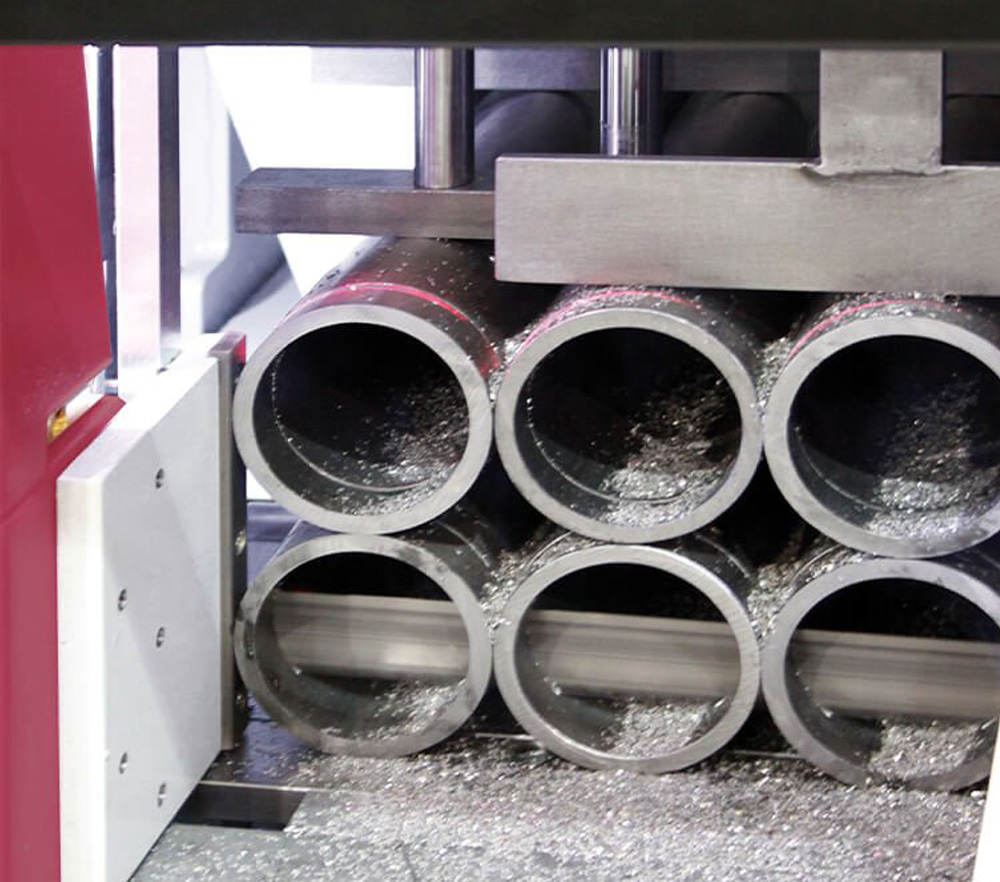

The automatic band saw HBE261A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE261A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Products specifications
Attribute nameAttribute value
Saw blade dimension (mm)4.440x34x1,1
Rest piece length in automatic operation70 mm
Blade speed (m/min)15-110
Material support height (mm)800
Weight approx. (kg)1850
Saw feedHydraulic
Cutting range 90° round [mm]260
Cutting range 90° flat [W x H in mm]300 x 260
Material feeding length (mm)640

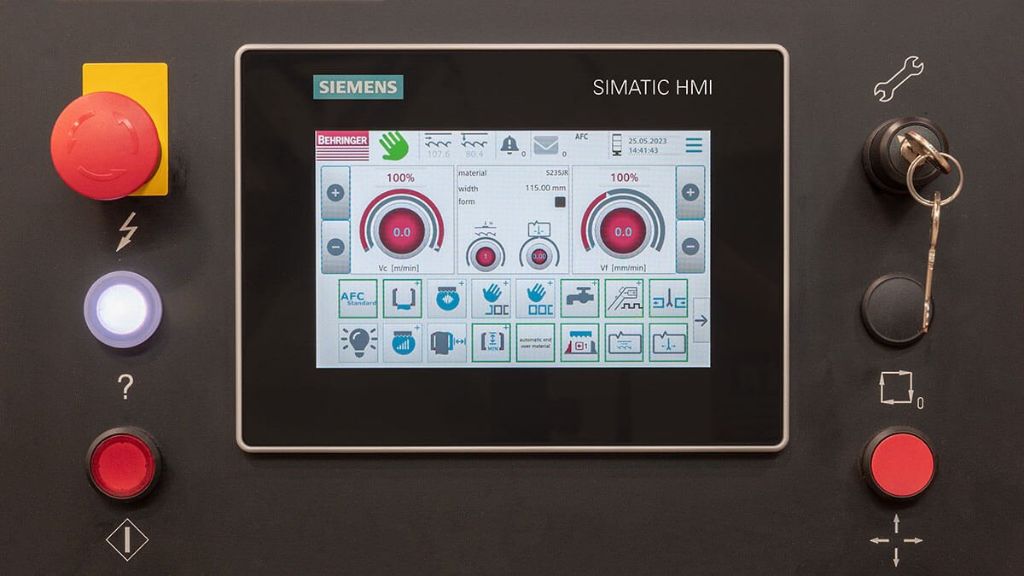

CNC-Program ControlsBT65 (Standard)
Sawblade bias 1°Standard
Automatic band guide adjustmentStandard
